Equipment

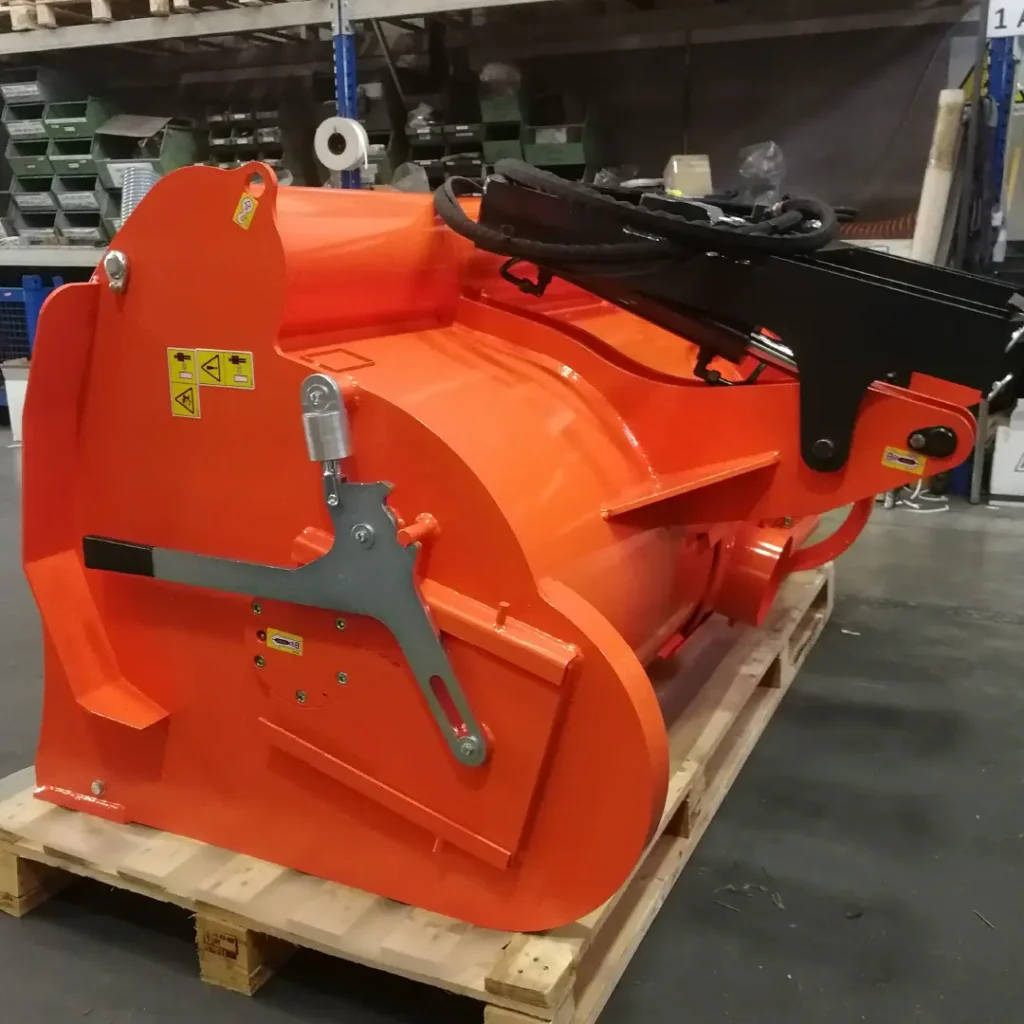

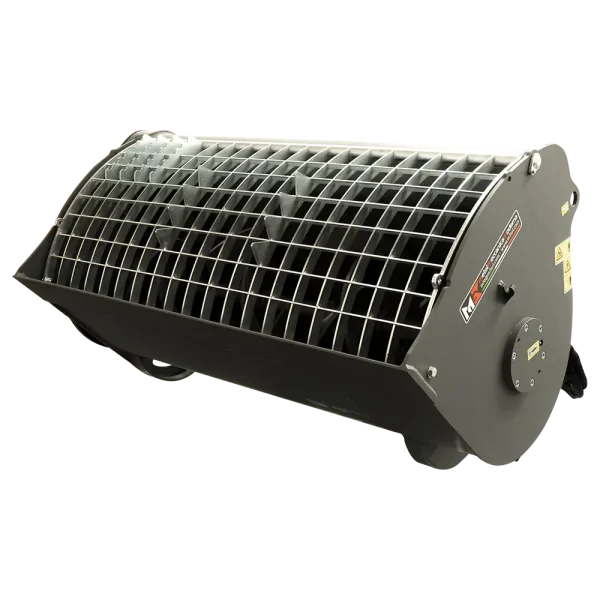

Twin Door Mixer Bucket
The concrete mixer bucket M3 model TD is equipped with:

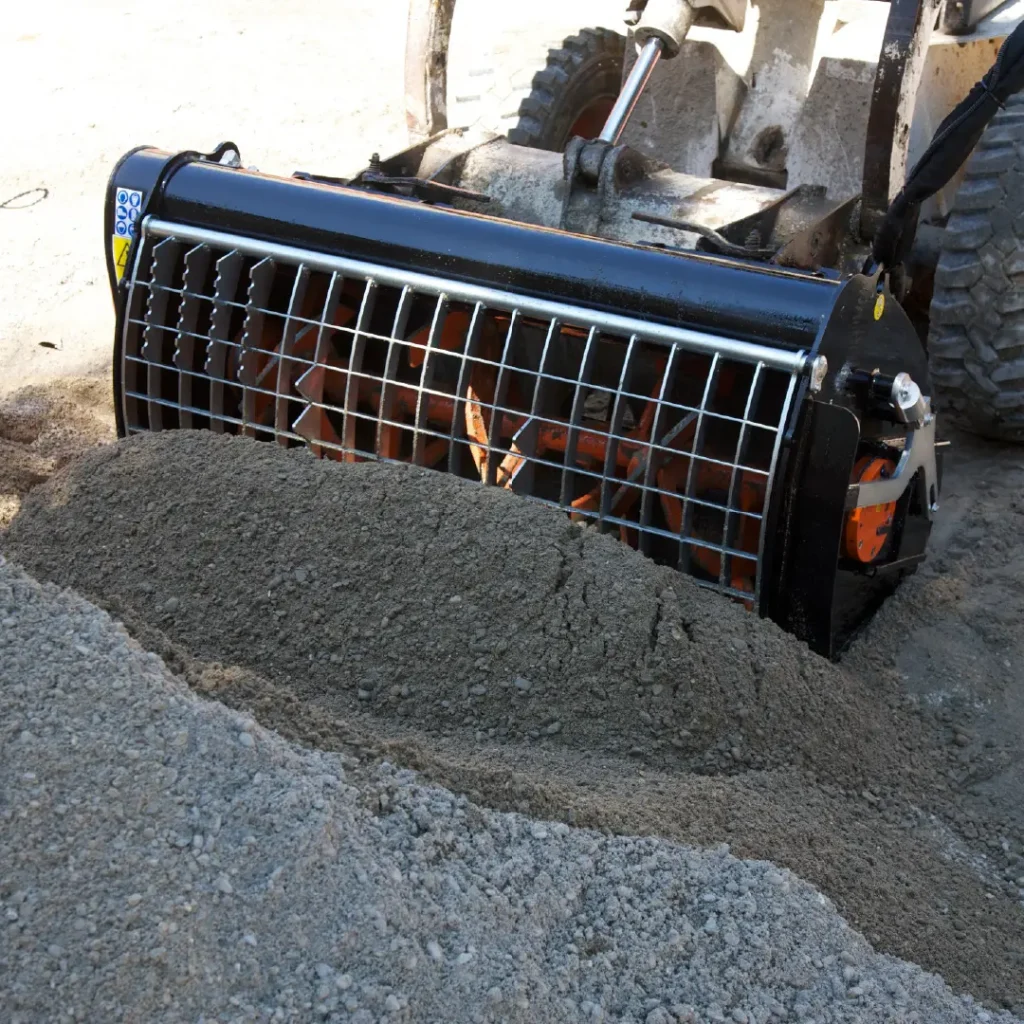

- safety grill with bag splitter
- BOTTOM and bolted HELIX made of wear resistant steel 450 HBW
- hydraulic motor fully protected
- chain tensioner
- electric valve with hydraulic hoses
- electric connection kit
- hydraulic hoses
- flat face couplings (only for SSL)

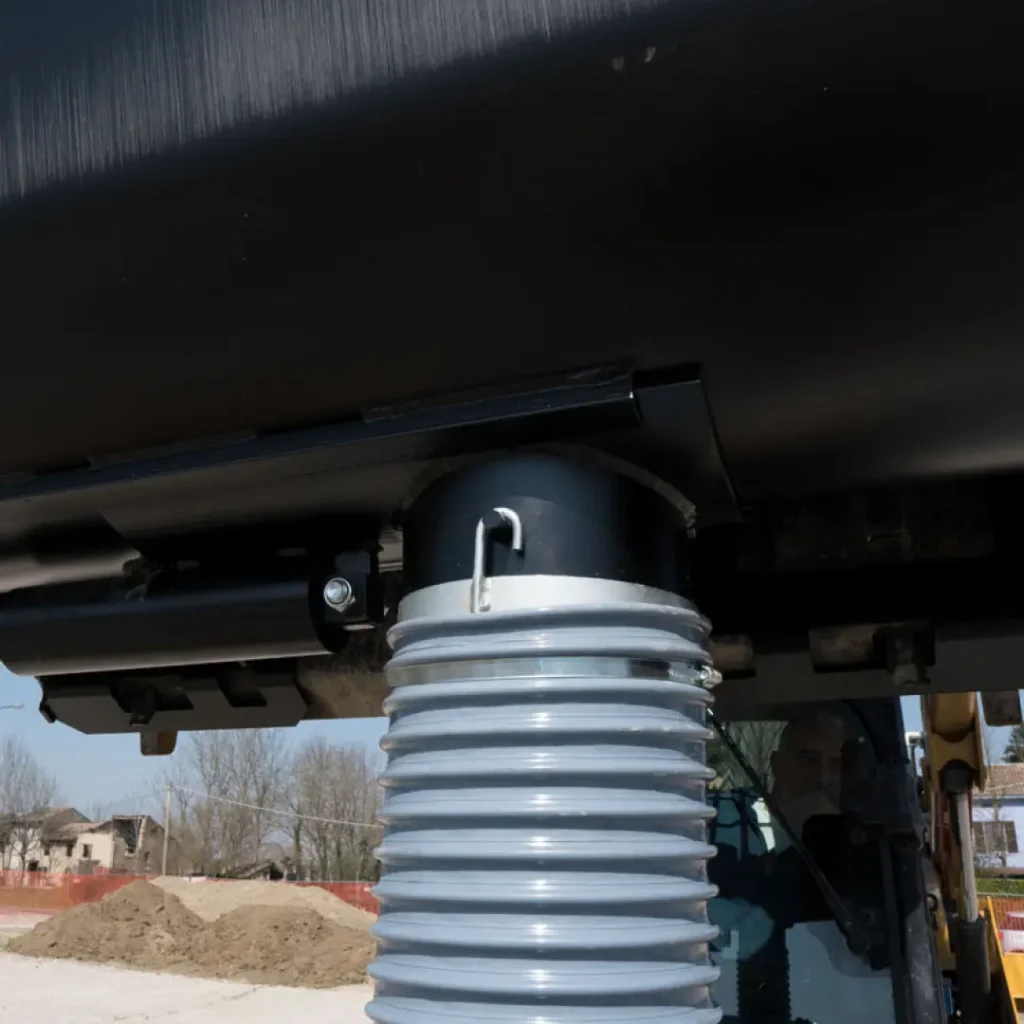

- hydraulic opening of the bottom through a cylinder with covered rod

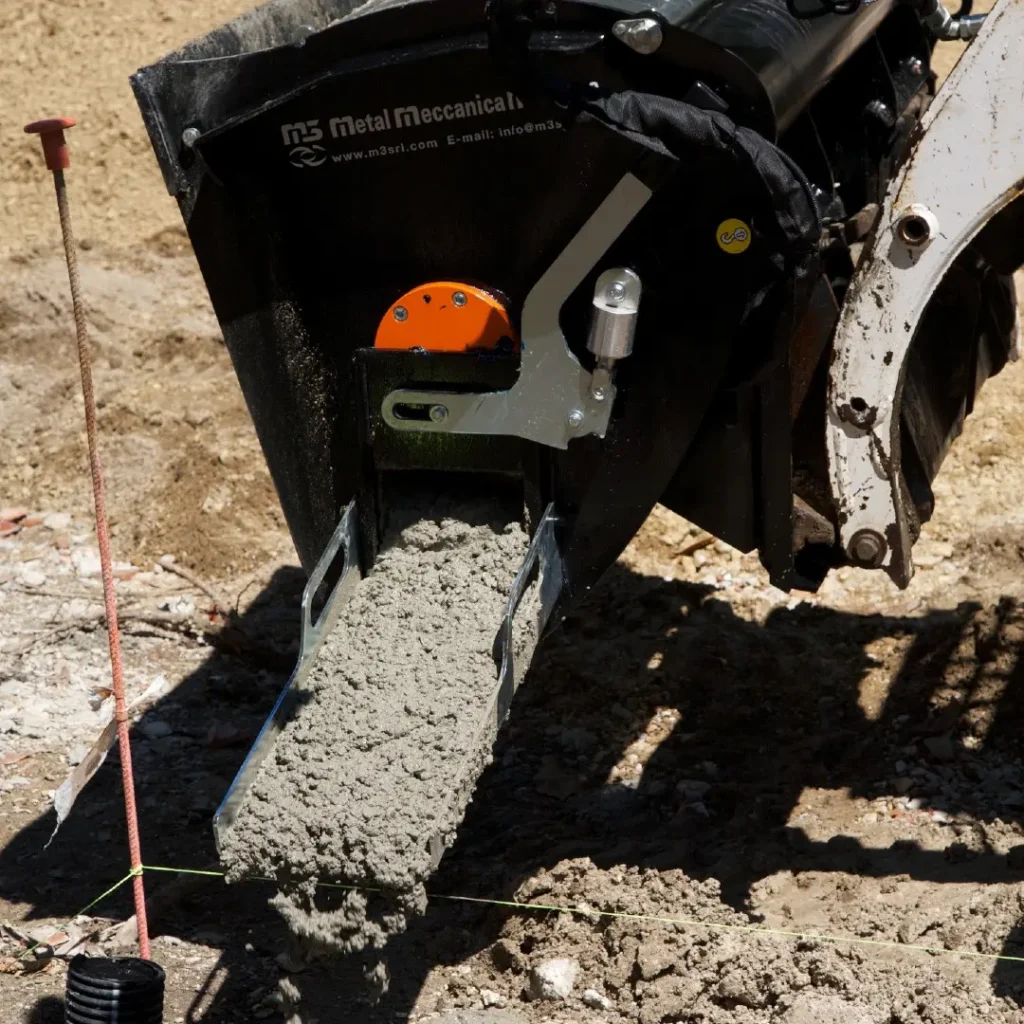

- manually-operated side discharge

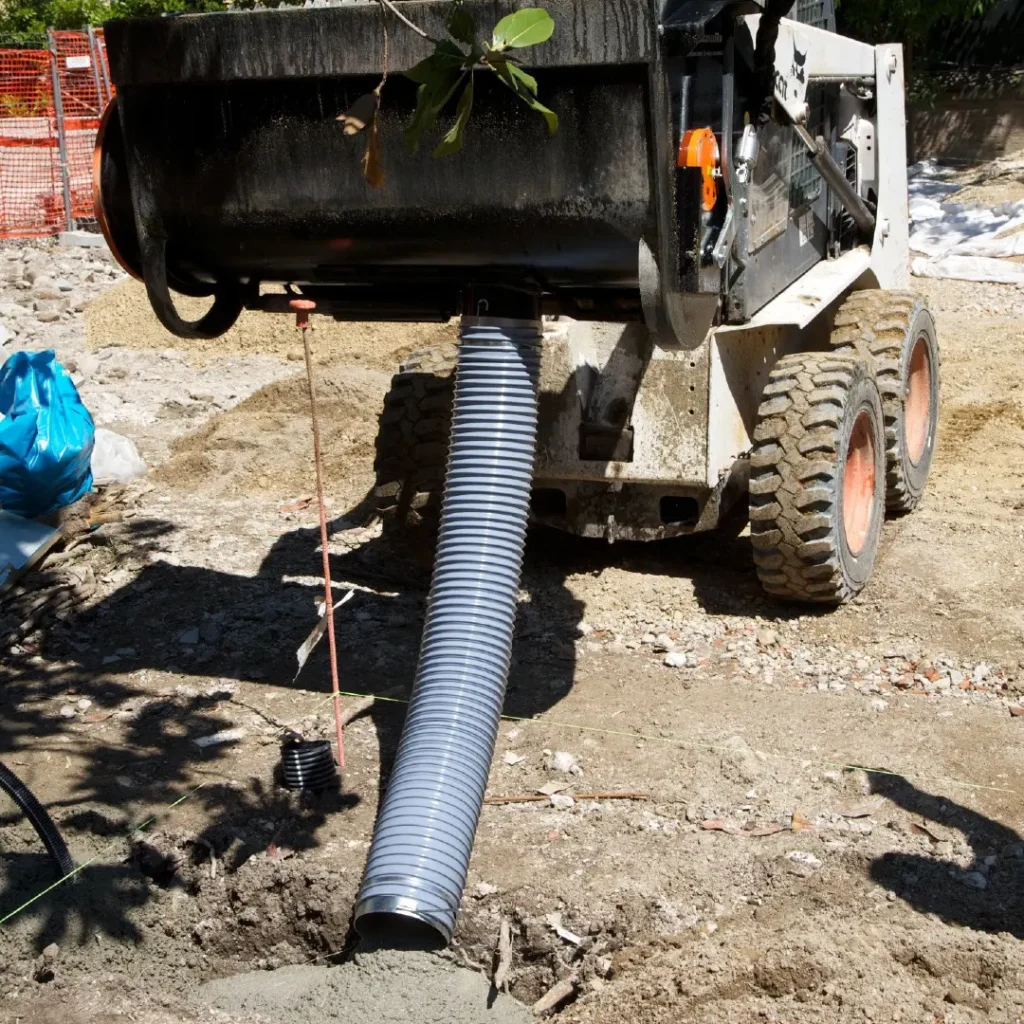

- unloading pipe L=1500 mm
- side chute extension
- coupling to the machine (standard bolted bracket starting from mod. BM500TD).
SUITABLE FOR EVERY KIND OF EARTHMOVING MACHINERY
- Skid loader: from 100 to 450 liters
- Backhoe loader: from 450 to 700 liters
- Wheel Loader: from 450 to 600 liters
- Telehandler
- 2-2,5 T from 350 to 450 liters
- 3-4 T 600 liters
- Excavator
- 3-4T 100 liters
- 4-5T 150 liters
- 5-7T 200 liters
- 9-7T 250 liters
- 9-12T from 350 to 400 liters
- 12-15T 450 liters
- 15-18T from 500 to 600 liters
- 18-24T 700 liters
- 24-30T 1100 liters
VIDEO
| MODEL | BM 150 TD | BM 200 TD | BM 250 TD | BM 330 TD | BM 400 TD | BM 500 TD | BM 600 TD | BM 700 TD | BM 1100 TD |

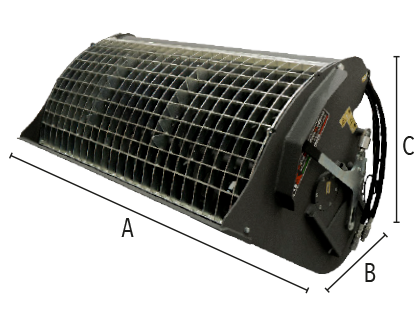

| Width (A) | 1350 | 1560 | 1560 | 1670 | 1780 | 1865 | 2010 | 2160 | 2280 |
| Depth (B) | 660 | 660 | 860 | 860 | 860 | 1075 | 1075 | 1075 | 1305 |
| Height (C) | 645 | 645 | 800 | 800 | 800 | 1033 | 1033 | 1033 | 1250 |
| Class | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 3 | 4 |
| Capacity [L] | 150 | 200 | 250 | 330 | 400 | 500 | 600 | 700 | 1100 |
| Transmission | chain | chain | chain | chain | chain | chain | chain | chain | chain |
| Empty weight [kg] | 310 | 335 | 435 | 455 | 480 | 720 | 740 | 790 | 1060 |
| Full load weight [kg] | 670 | 815 | 1035 | 1247 | 1440 | 1920 | 2180 | 2470 | 3700 |
| Min/max flow rate [L/min] | 30/60 | 30/60 | 40/75 | 35/75 | 35/75 | 70/150 | 70/150 | 70/150 | 100/115 |
| Max pression cont/peak [bar] | 175/225 | 175/225 | 175/225 | 210/300 | 210/300 | 150/310 | 150/310 | 150/310 | 205/330 |
